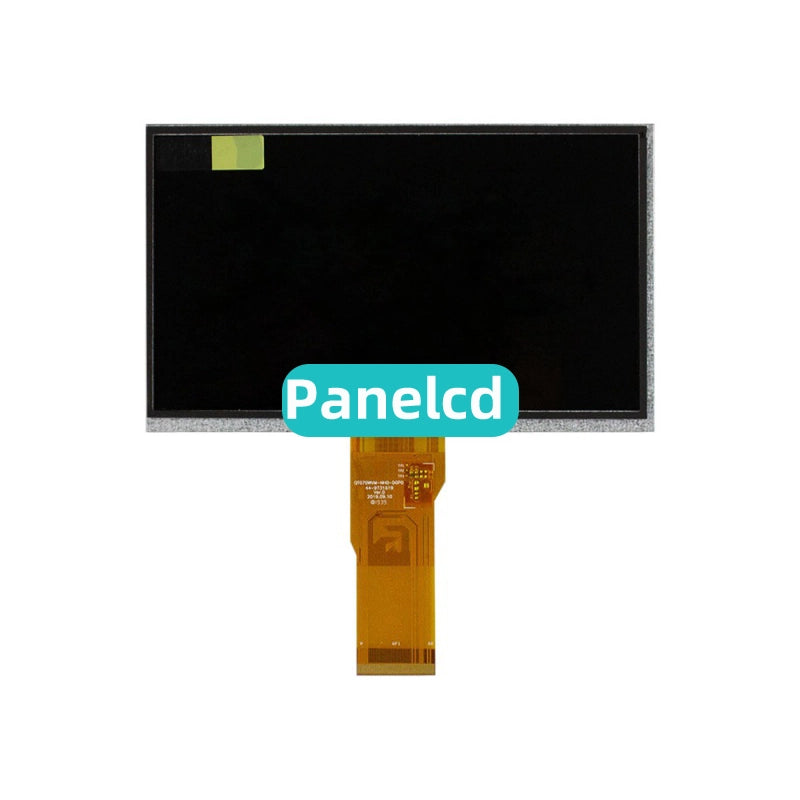

AA070TA11
Regular price
$0.00
Sale price:
$0.00
Regular price:
Sale:
-0%
Out of stock
SKU:AA070TA11
- Brand: Mitsubishi
- Panel Type: a-Si TFT-LCD, LCM
- Diagonal Size: 7"
- Pixel Format: RGB Vertical Stripe
- Resolution: 1280(RGB)×768, WXGA 214PPI
- Viewing Angle: 88/88/88/88 (Typ.)(CR≥10)
- Active Area: 151.68(W)×91.01(H) mm
- Outline Size: 165(H)×104(V) ×7.55(D) mm
- Luminance: 1000 cd/m² (Typ.)
- Contrast Ratio: 1000: 1 (Typ.) (TM)
- Color Depth: 262K/16.7M 50% NTSC
- Work Mode: SWV, Normally Black, Transmissive
- Signal Type: LVDS (1 ch, 6/8-bit) , 20 pins Connector
- Voltage Supply: 3.3V (Typ.)
- Backlight: WLED , 100K hours , With LED Driver
- Max. Ratings: Storage Temp.: -40 ~ 80 °C Operating Temp.: -40 ~ 80 °C ; Vibration Level: 6.8G (66.64 m/s²)
- Weight: 200g (Typ.)
- Refresh Rate: 60Hz
Check LCD panel compatibility
Match the complete panel model and suffix, resolution, connector type and position, touch function and mounting. Screen size alone does not confirm compatibility.
