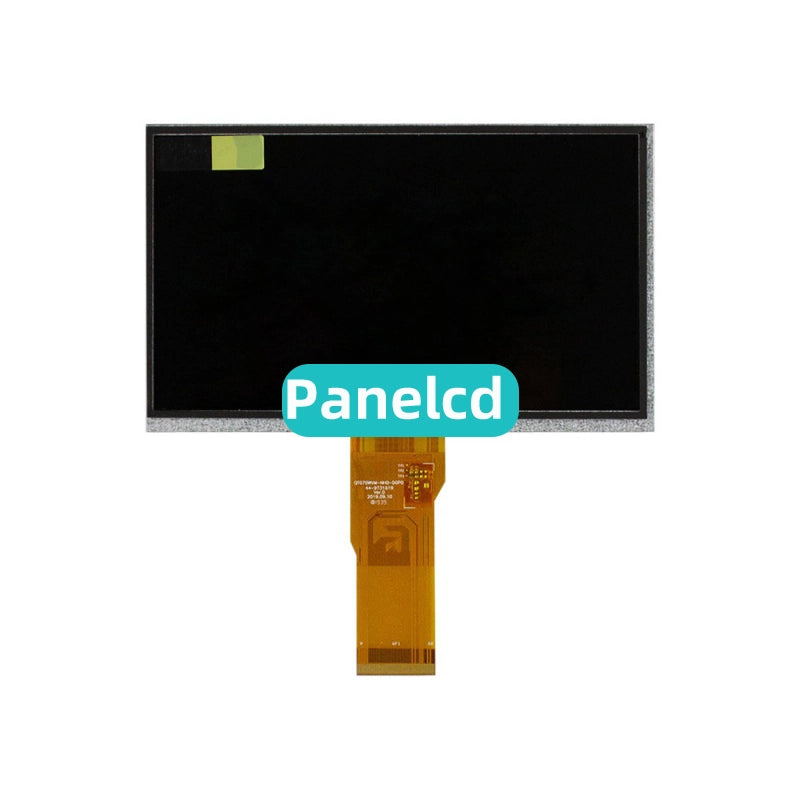

LMS700KF21
Regular price
$0.00
Sale price:
$0.00
Regular price:
Sale:
-0%
Out of stock
SKU:LMS700KF21
- Brand: Samsung
- Panel Type: a-Si TFT-LCD, LCM
- Diagonal Size: 7"
- Pixel Format: RGB Vertical Stripe
- Resolution: 800(RGB)×480, WVGA 133PPI
- Viewing Angle: 70/70/70/70 (Typ.)(CR≥10)
- Active Area: 152.4(W)×91.44(H) mm
- Outline Size: 163(H)×104(V) ×4.7(D) mm
- Luminance: 280 cd/m² (Typ.)
- Contrast Ratio: 700: 1 (Typ.) (TM)
- Color Depth: 262K/16.7M 50% NTSC
- Work Mode: TN, Normally White, TMR
- Signal Type: Parallel RGB (1 ch, 8-bit) , 40 pins FPC
- Voltage Supply: 3.3V (Typ.)
- Backlight: 8S3P WLED , No Driver
- Max. Ratings: Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C
- Weight: 147g (Typ.)
- Refresh Rate: 60Hz
Check LCD panel compatibility
Match the complete panel model and suffix, resolution, connector type and position, touch function and mounting. Screen size alone does not confirm compatibility.
