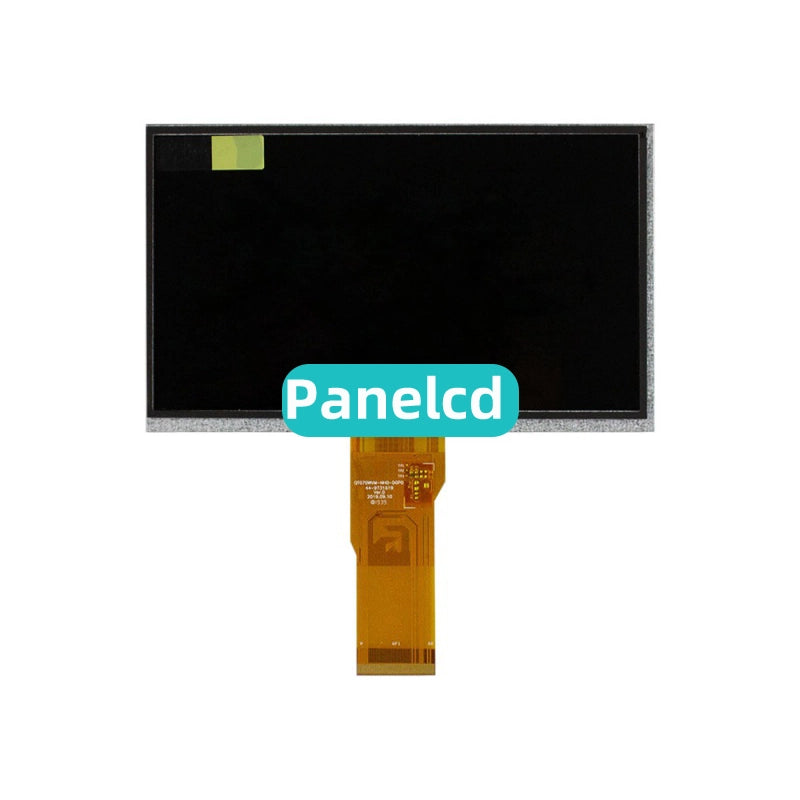

LTL070NL01-002
Regular price
$0.00
Sale price:
$0.00
Regular price:
Sale:
-0%
Out of stock
SKU:LTL070NL01-002
- Brand: Samsung
- Panel Type: a-Si TFT-LCD, LCM
- Diagonal Size: 7"
- Pixel Format: RGB Vertical Stripe
- Resolution: 1024(RGB)×600, WSVGA 169PPI
- Viewing Angle: 80/80/80/80 (Typ.)(CR≥10)
- Active Area: 153.6(W)×90(H) mm
- Outline Size: 164.05(W)×99.96(H) ×4.37(D) mm
- Luminance: 200 cd/m² (Typ.)
- Contrast Ratio: 800: 1 (Typ.) (TM)
- Color Depth: 262K/16.7M 50% NTSC
- Work Mode: PLS, Normally Black, Transmissive
- Signal Type: LVDS (1 ch, 8-bit) , 31 pins Connector
- Voltage Supply: 3.3V (Typ.)
- Backlight: WLED [6S4P] , With LED Driver
- Max. Ratings: Operating Temperature: -20 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
- Weight: 100g (Max.)
- Refresh Rate: 60Hz
Check LCD panel compatibility
Match the complete panel model and suffix, resolution, connector type and position, touch function and mounting. Screen size alone does not confirm compatibility.
